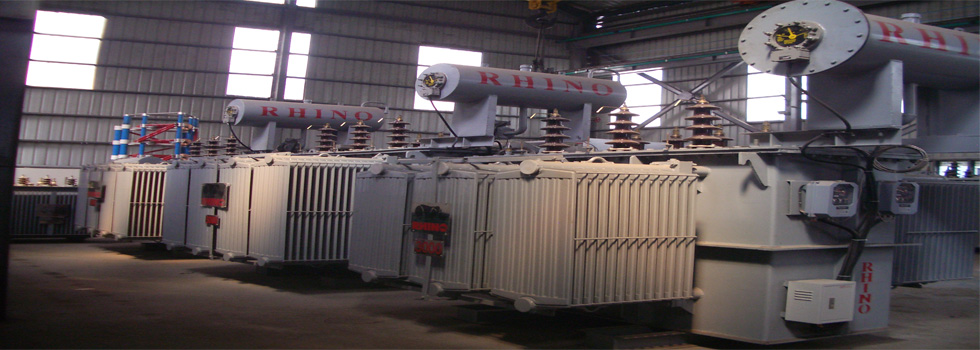

Power Transformer

33kv Power Transformer Specification

Power kVA	Voltage Combination			Connnection Symbol	No Load Loss kW	Load Loss kW	No Load Current %	Impedance Voltage %	Weight			Dimension
	H.V	Tapping Range	L.V kV						Weight			Dimension
	H.V	Tapping Range	L.V kV						Active Parts	Oil	Total	L x W xH
630	33	±5%	6.6 11	Dyn 11	1.04	8.28	1.10	6.5	1500	850	3000	2480 × 1330 × 2250
800					1.23	9.90	1.00		2100	1000	3850	2510 × 1400 × 2650
1000					1.44	12.15	1.00		2150	1100	4200	2460 × 1480 × 2710
1250					1.76	14.67	0.90		2500	1150	5050	2660 × 1350 × 2750
1600					2.12	17.55	0.80		2700	1450	5700	2730 × 1530 × 2725
2000					2.72	19.35	0.70		3620	1800	6800	2690 × 1770 × 2945
2500					3.20	20.70	0.60		3800	1900	6780	59050 × 2260 × 2680
3150	33	±5%	6.6 11		3.80	24.30	0.56	7.0	3980	1620	7500	2750 × 2580 × 2670
4000					4.52	28.80	0.56		5000	1900	8800	2760 × 2830 × 2820
5000					5.40	33.03	0.48		6100	2180	10500	2780 × 2180 × 2870
6300					6.56	36.90	0.48		7000	2360	12060	3200 × 2700 × 3000
8000	33	±2 × 2.5%	6.6 11		9.00	40.50	0.42	7.5	9000	3580	16200	3600 × 3250 × 3230
10000					10.88	47.70	0.42		11550	6330	23300	3660 × 3260 × 3320
12500					12.60	56.70	0.40		13900	6350	25840	4000 × 3290 × 3400
16000					15.20	63.90	0.40	8.0	15455	6900	28100	4830 × 4500 × 3820
20000					18.00	83.70	0.40		18040	8200	32800	5500 × 4700 × 3390
25000					21.28	99.00	0.32		20120	9310	35900	5710 × 4930 × 4180
31500					25.28	118.80	0.32		22070	9880	38420	5950 × 5220 × 4360

66kv Power Transformer Specification (NLTC)

Power kVA	Voltage Combaination			Connection Symbol	No load Loss kW		Load Loss kW	No Load Current %	Impedance Voltage %
Power kVA	H.V.kV	Tapping Range	LV.kV	Connection Symbol	No load Loss kW		Load Loss kW	No Load Current %	Impedance Voltage %
6300	66	±8×2.5%	6.6 11	Dyn 11	9.7		34.2	0.8	9
8000					11.6		40.7	0.8
10000					12.4		47.5	0.65
12500					16.3		56.6	0.6
16000					19.5		69.4	0.6
20000					23.3		84.3	0.5
25000					27.5		99.9	0.5
31500					32.8		119.5	0.45
40000					39.2		140.3	0.45
50000					46.4		174.1	0.4
63000					55.7	209.6		0.4

66kv Power Transformer Specification (OLTC)

Power kVA	Voltage Combination			Connection Symbol	No load Loss kW	Load Loss kW	No load Current	Impedance Voltage
Power kVA	H.V.kV	Tapping Range	LV.kV	Connection Symbol	No load Loss kW	Load Loss kW	No load Current	Impedance Voltage
630	66	±5%	6.6 11	Yd11 YND11 Dyn11	1.5	7.2	1.3	8
800					1.7	8.5	1.2
1000					2.2	9.9	1.15
1250					2.5	12	1.15
1600					3.0	16	1.1
2000					3.5	16.5	1.05
2500					4.2	19.5	1.00
3150					5.0	23.2	0.85
5000	66	±2 ×2.5%	6.6 11		7.0	31.3	0.8	9
6300					9.0	34.7	0.7
8000					11.2	40.6	0.7
10000					12.8	47.5	0.65
12500					15.6	56.5	0.65
16000					18.8	69.8	0.6
20000					21.0	84.5	0.6
25000					25.0	99.8	0.6
31500					29.5	119.7	0.5
50000					42.0	174.3	0.45
63000					50.0	210.9	0.45

Distribution Transformer

33kv Distribution Transformer Specification

Power kVA	Voltage Combination			Connnection Symbol	No Load Loss kW	Load Loss kW	No Load Current %	Impedance Voltage %	Weight			Dimension
	H.V	Tapping Range	L.V kV						Weight			Dimension
	H.V	Tapping Range	L.V kV						Active Parts	Oil	Total	L x W xH
100	33	±2.5%	0.4	Dyn11	0.28	2.03	1.8	6.5	420	360	1040	1185 × 990 × 1540
160					0.33	2.84	1.6		600	450	1350	1200 × 1100 × 1980
200					0.39	3.33	1.5		680	480	1780	1380 × 1150 × 2010
250					0.46	3.96	1.4		780	490	1650	1650 × 1120 × 2030
315					0.61	4.77	1.4		910	530	1840	1830 × 1130 × 2110
400					0.66	5.76	1.3		1050	650	2200	2020 × 1140 × 2100
500					0.78	6.93	1.2		1300	670	2300	2170 × 1280 × 2080
630					0.93	8.28	1.1		1500	850	3000	2100 × 1330 × 2250
800					1.12	9.90	1.0		2100	1000	3850	2480 × 1400 × 2650
1000					1.32	12.15	1.0		2150	1100	4200	2510 × 1480 × 2710
1250					1.60	14.67	0.9		2500	1150	5050	2460 × 1350 × 2750
1600					1.90	17.55	0.8		2700	1450	5700	2660 × 1530 × 2725

11kv Distribution Transformer Techanical Data

Our oil immersed distribution transformer is hermetically seal type ,use corrugated tank , and with pressure relife device.Optional conservator type is also available .

Power kVA	Voltage Combination			Connnection Symbol	No Load Loss kW	Load Loss kW	No Load Current %	Impedance Voltage %	Weight			Dimension
	H.V	Tapping Range	L.V kV						Weight			Dimension
	H.V	Tapping Range	L.V kV						Active Parts	Oil	Total	L x W xH
50	66 11	±2 ×2.5%	0.4	Dyn11	0.17	0.87	2.0	4	200	80	370	850 × 700 × 1040
100					0.29	1.50	1.7		325	110	560	920× 740 × 1130
160					0.40	2.20	0.5		445	140	577	1010 × 845 × 1210
200					0.48	2.60	0.4		525	165	885	1050 × 950 × 1240
250					0.56	3.05	0.4		617	190	1032	1090 × 1070 × 1270
315					0.67	3.65	1.3		745	220	1225	1150 × 900 × 1330
400					0.80	4.30	1.3		900	275	1460	1200 × 1000 × 1400
500					0.96	5.15	1.2		1050	310	1710	1270 × 1100 × 1420
650	66 11	±2 ×2.5%	0.4	Dyn11	1.20	6.20	1.1	4.5	1310	450	2180	1480 × 1290 × 1560
800					1.40	7.50	1.0		1490	455	2495	1510 × 1330 × 1600
1000					1.70	10.30	1.0		1700	515	3005	1570× 1400 × 1610
1250					1.95	12.00	0.9		1930	585	3310	1560 × 1630 × 1730
1600					2.40	14.50	0.8		2355	670	4980	1630 × 1560 × 1810
2000					2.85	17.40	0.8		2750	765	5940	1690 × 1680 × 1820

66kv Power Transformer Specification (OLTC)

Power kVA	Voltage Combination			Connection Symbol	No load Loss kW	Load Loss kW	No load Current	Impedance Voltage
Power kVA	H.V.kV	Tapping Range	LV.kV	Connection Symbol	No load Loss kW	Load Loss kW	No load Current	Impedance Voltage
630	66	±5%	6.6 11	Yd11 YND11 Dyn11	1.5	7.2	1.3	8
800					1.7	8.5	1.2
1000					2.2	9.9	1.15
1250					2.5	12	1.15
1600					3.0	16	1.1
2000					3.5	16.5	1.05
2500					4.2	19.5	1.00
3150					5.0	23.2	0.85
5000	66	±2 ×2.5%	6.6 11		7.0	31.3	0.8	9
6300					9.0	34.7	0.7
8000					11.2	40.6	0.7
10000					12.8	47.5	0.65
12500					15.6	56.5	0.65
16000					18.8	69.8	0.6
20000					21.0	84.5	0.6
25000					25.0	99.8	0.6
31500					29.5	119.7	0.5
50000					42.0	174.3	0.45
63000					50.0	210.9	0.45

Amorphous Metal Transformer

Serial SH15-M amorphous metal core transformer with advanced design,on base of stable insulating characteristics and safety operation of serial S11-M,it's core is wound with amorphous alloy material, which possesses the no- load loss as low as about 25% of serial S9(with silicon steel core).

Power kVA	Voltage Combination			Connnection Symbol	No Load Loss kW	Load Loss kW	No Load Current %	Impedance Voltage %	Weight			Dimension
	H.V	Tapping Range	L.V kV						Weight			Dimension
	H.V	Tapping Range	L.V kV						Active Parts	Oil	Total	L x W xH
50	66 11	±2 ×2.5%	0.4	Yyn0 Dyn11	0.043	0.870	1.3	4	310	110	510	950 × 620 × 1040
100					0.075	1.500	1.0		475	150	720	1060 × 900 × 1070
160					0.100	2.200	0.7		630	190	960	1060 × 930 × 1150
200					0.120	2.600	0.7		670	210	1040	1110 × 930 × 1170
250					0.140	3.050	0.7		750	240	1160	1180 × 1010 × 1180
315					0.170	3.650	0.5		810	265	1240	1180 × 1010 × 1180
400					0.200	4.300	0.5		860	290	1330	1200 × 1010 × 1180
500					0.240	5.150	0.5		950	320	1460	1270 × 1160 × 1200
630				Yyn0 Dyn11	0.320	6.200	0.3	4.5	1120	380	1860	1450 × 1240 × 1330
800					0.380	7.500	0.3		1340	410	2230	1520× 1380 × 1460
1000					0.450	10.300	0.3		1620	540	2700	1780 × 2700 × 3000
1250					0.530	12.000	0.2		1900	640	3180	3600 × 1500 × 1690
1600					0.630	14.500	0.2		2560	680	4240	1800 × 1540 × 1970
2000					0.750	17.800	0.2		2900	960	4920	2080 × 1580× 1970
2500					0.900	20.20	0.2		3940	1160	6560	2350 × 1580 × 2020

66kv Power Transformer Specification (NLTC)

Power kVA	Voltage Combaination			Connection Symbol	No load Loss kW		Load Loss kW	No Load Current %	Impedance Voltage %
Power kVA	H.V.kV	Tapping Range	LV.kV	Connection Symbol	No load Loss kW		Load Loss kW	No Load Current %	Impedance Voltage %
6300	66	±8×2.5%	6.6 11	Dyn 11	9.7		34.2	0.8	9
8000					11.6		40.7	0.8
10000					12.4		47.5	0.65
12500					16.3		56.6	0.6
16000					19.5		69.4	0.6
20000					23.3		84.3	0.5
25000					27.5		99.9	0.5
31500					32.8		119.5	0.45
40000					39.2		140.3	0.45
50000					46.4		174.1	0.4
63000					55.7	209.6		0.4

66kv Power Transformer Specification (OLTC)

Power kVA	Voltage Combination			Connection Symbol	No load Loss kW	Load Loss kW	No load Current	Impedance Voltage
Power kVA	H.V.kV	Tapping Range	LV.kV	Connection Symbol	No load Loss kW	Load Loss kW	No load Current	Impedance Voltage
630	66	±5%	6.6 11	Yd11 YND11 Dyn11	1.5	7.2	1.3	8
800					1.7	8.5	1.2
1000					2.2	9.9	1.15
1250					2.5	12	1.15
1600					3.0	16	1.1
2000					3.5	16.5	1.05
2500					4.2	19.5	1.00
3150					5.0	23.2	0.85
5000	66	±2 ×2.5%	6.6 11		7.0	31.3	0.8	9
6300					9.0	34.7	0.7
8000					11.2	40.6	0.7
10000					12.8	47.5	0.65
12500					15.6	56.5	0.65
16000					18.8	69.8	0.6
20000					21.0	84.5	0.6
25000					25.0	99.8	0.6
31500					29.5	119.7	0.5
50000					42.0	174.3	0.45
63000					50.0	210.9	0.45

Dry-Type Transformer

Expoxy Resin Dry-type Transformer

Parameters	Rated voltage	11-6.6/0.4kV,11/6.6kV,11/0.4kV.
Parameters	Rated Capacity	50~2000kVA.

Feature	High security and reliability in operation.
	Economic and efficient to reduce network loss and working cost.
	Low temperature rise.
	Low noise
	Operation in most place with high moisture-proof capability.
	Customized transformers are available.

H-Class Insulation Dry-type Transformer

Parameters	Rated voltage	11-6.6/0.4kV,11/6.6kV,11/0.4kV.
Parameters	Rated Capacity	50~2000kVA.

Feature	High security and reliability in operation.
	Economic and efficient to reduce network loss and working cost.
	Low temperature rise.
	Low noise
	Operation in most place with high moisture-proof capability.
	Customized transformers are available.

66kv Power Transformer Specification (OLTC)

Power kVA	Voltage Combination			Connection Symbol	No load Loss kW	Load Loss kW	No load Current	Impedance Voltage
Power kVA	H.V.kV	Tapping Range	LV.kV	Connection Symbol	No load Loss kW	Load Loss kW	No load Current	Impedance Voltage
630	66	±5%	6.6 11	Yd11 YND11 Dyn11	1.5	7.2	1.3	8
800					1.7	8.5	1.2
1000					2.2	9.9	1.15
1250					2.5	12	1.15
1600					3.0	16	1.1
2000					3.5	16.5	1.05
2500					4.2	19.5	1.00
3150					5.0	23.2	0.85
5000	66	±2 ×2.5%	6.6 11		7.0	31.3	0.8	9
6300					9.0	34.7	0.7
8000					11.2	40.6	0.7
10000					12.8	47.5	0.65
12500					15.6	56.5	0.65
16000					18.8	69.8	0.6
20000					21.0	84.5	0.6
25000					25.0	99.8	0.6
31500					29.5	119.7	0.5
50000					42.0	174.3	0.45
63000					50.0	210.9	0.45
